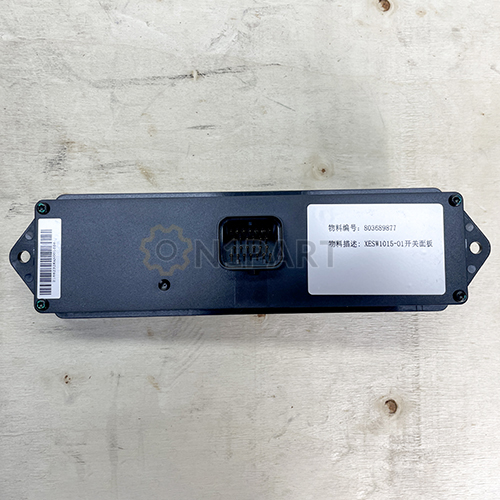

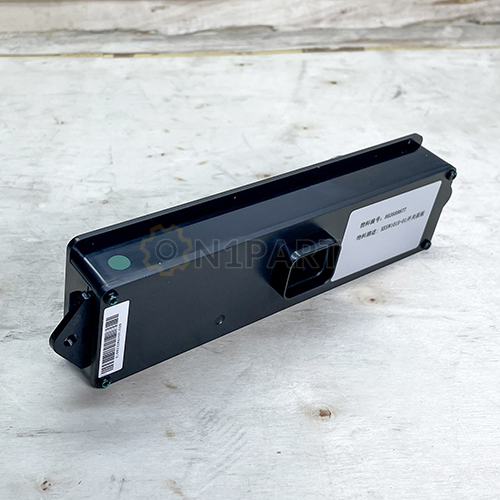

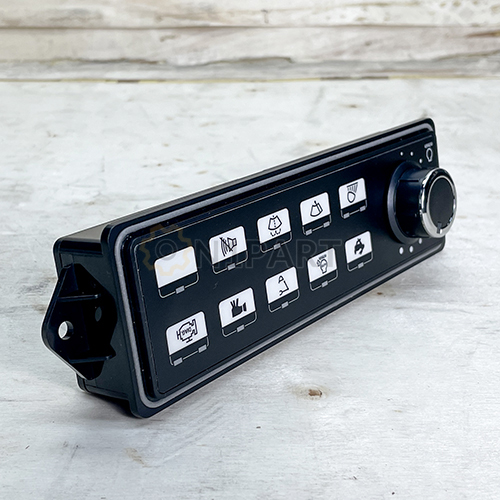

XCMG 803689877 Switch Panel XESW1015-01 Throttle Knob Switch Air Conditioning Control Panel
PRODUCT INFORMATION
The XCMG 803689877 Throttle Knob Assembly Switch Panel is a genuine XCMG original excavator control panel. It integrates core functions such as throttle adjustment, air conditioning control, and lighting switches, and is used for equipment operation management within the cab.
| Place of Origin: | China xuzhou |
| Brand Name: | XCMG |
| Model Number: | 803689877 |
| Certification: | ISO CCC |
| Minimum Order Quantity: | 1 PCS |
| Delivery Time: | 3-7days |
| Type Of Shipping | According to your request |
More Parts Recommended
803689877 Switch Panel Descriptions：
This control switch is used across various XCMG excavator models, with its primary application being the XE215D. Because the XE215D, XE230D, and XE260D (among other models) share the same cab control module, this switch is also compatible with these additional models. The 803689877 Throttle Knob Assembly is a core control panel within the cab’s electrical control system, integrating essential functions such as throttle adjustment, air conditioning control, and lighting switches for equipment operation and management inside the cab.
| Part Name | Switch panel |
| Part Number | 803689877 |
| Software version | 906584 |
| Send NO. | 80151045 |
| Soft V.: | V02.02.00 |
| Model Batch | J240302-XE205G-12/5015 |
| Brand | XCMG |
| Condition | New |
| Quality | Original OEM |
| Part Type | control system |
| Application | XCMG excavators |
| Purpose | For replace/Repair |
| Warranty | 6 months |
| Origin | XCMG XuZhou China |
803689877 -Related Diagram
| 310707825 Electric Control System | ||
| PART NO. | PART NAME | Q’TY |
| 803588494 | 监控器 | 1 |
| 805338383 | 垫圈5 WASHER | 10 |
| 805046906 | 螺栓M5×12 BOLT | 4 |
| 803689877 | 开关面板 KEY BOARD | 1 |
| 805140015 | 螺钉 M5×16 SCREW | 6 |
| 803547412 | 空调面板 CONTROL UNIT | 1 |
| 803704459 | 点烟器 CIGAR LIGHTER | 1 |
| 803700081 | 8SQZ.311.000堵板 BLANK COVER | 8 |
| 310707813 | 监控器线束 HARNESS | 1 |
| 310707811 | 右扶手箱总成 RIGHT HANDRAIL BOX | 1 |
| 803670669 | 钥匙开关KEY SWITCH | 1 |
| 803746124 | 收音机RADI0 | T |
| 310707809 | 左扶手箱总成LEFT HANDRAIL BOX | 1 |
| 803677946 | 急停开关SWITCH | 1 |
| 805046416 | 螺栓M10×3010.9 (达克罗)BOLT | 8 |
| 805302497 | 垫圈10300HV WASHER | 8 |
