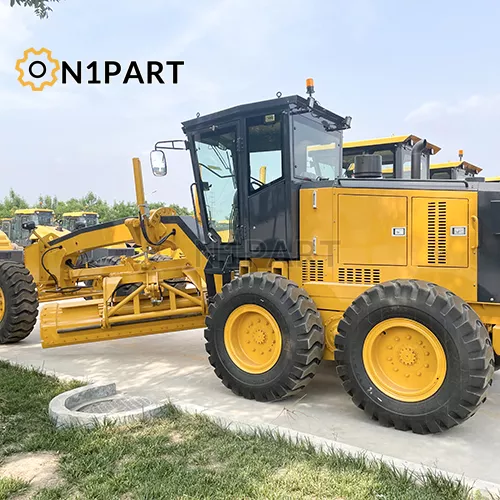

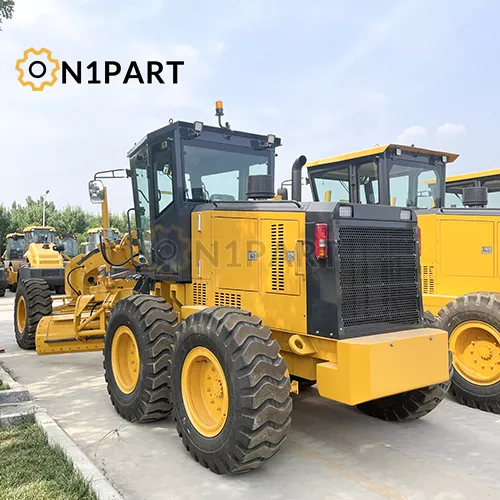

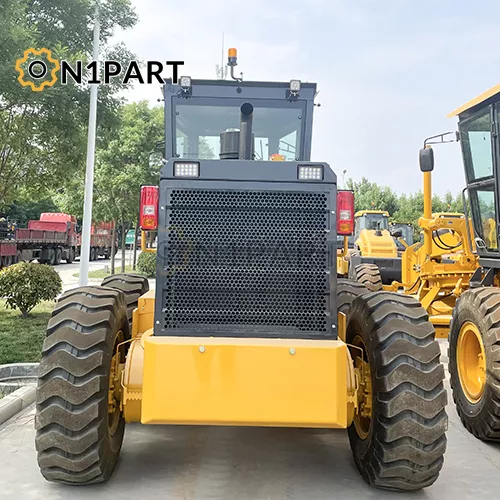

China High Quality SHANTUI 3.6m 4.2m blade customization 165Hp Motor Grader Price Land Scraper Leveller
Product Catalog
PRODUCT PARAMETERS
- Brand๏ผSHANTUI
- Model: SG16-3
- Product Type๏ผMotor Grader
- Engine๏ผ6BTAA5.9-C160
- Rated power๏ผ118kW/2200
- Fuel Tank๏ผDiesel๏ผ๏ผ340L
- Place of Origin: China ๏ผshandong province๏ผ
- MOQ ๏ผ1 piece
- Payment Terms :ย T/T, L/C
Same type recommendation
No products were found matching your selection.
Description
| Performance parameters | |
| Product name | SG16-3 |
| Operating weight of machine (kg) | 15100 |
| Wheelbase (mm) | 6260 |
| Wheel tread (mm) | 2155 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (ยฐ) | ยฑ45 |
| Articulated steering angle (ยฐ) | ยฑ25 |
| Maximum traction force (kN) | 79.3(f=0.75) |
| Turning radius (mm) | 7,800 (Outer side of front wheel) |
| Maximum gradeability (ยฐ) | 20 |
| Width of shovel blade (mm) | 3660 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (ยฐ) | 360 |
| Blade cutting angle (ยฐ) | 37-83 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 8726 |
| Width (mm) | 2600 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | 6BTAA5.9-C160 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 118kW/2200 |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
| Speed for forward gear I (km/h) | 5.4 |
| Speed for forward gear II (km/h) | 8.4 |
| Speed for forward gear III (km/h) | 13.4 |
| Speed for forward gear IV (km/h) | 20.3 |
| Speed for forward gear V (km/h) | 29.8 |
| Speed for forward gear VI (km/h) | 39.6 |
| Speed for reverse gear I (km/h) | 5.4 |
| Speed for reverse gear II (km/h) | 13.4 |
| Speed for reverse gear III (km/h) | 29.8 |
| Brake system | |
| Service brake type | Hydraulic brake |
| Parking brake type | Mechanical brake |
| Brake oil pressure (MPa) | 10 |
| Hydraulic system | |
| Working pump | Constant displacement gear pump, with flow at 28ml/r |
| Operating valve | Integral multi-way valve |
| Pressure setting of safety valve (MPa) | 16 |
| Pressure setting of safety valve (MPa) | 12.5 |
| Filling of fuel/oils/fluids | |
| Fuel tank (L) | 340 |
| Working hydraulic fuel tank (L) | 110 |
| Transmission (L) | 28 |
| Drive axle (L) | 25 |
| Balance box (L) | 2X38 |
